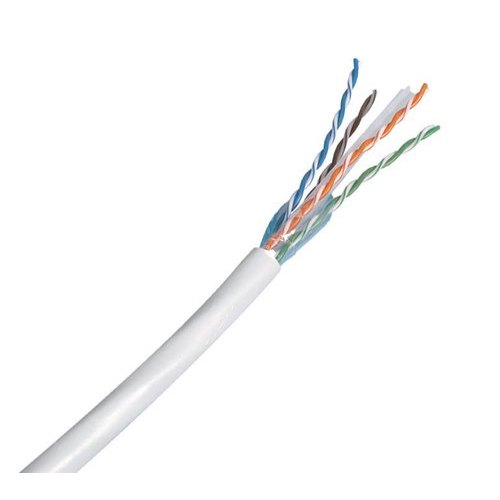

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable
R&M Networking Cable

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable

R&M R&M R795138 Cat-6 U/UTP 305 Meter Network Cable — a quality Networking Cable available at Creators Computer.

Cash Discount Available

Product availability and pricing are subject to change. We will confirm availability and final price before processing your order.

Technical Specifications

Standard ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Color Yellow Blue Grey
Conductor Bare solid copper
Insulation HDPE, overall Ø 0.92±0.02 mm
Twisting 2 wires to the pair
Cable Lay-Up 4 pairs to the core with cross separator
Pair Screen Non
Overall Screen Non
Sheath PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Application Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Fire Rating Flame retardant- PVC
Cable Designation U/UTP Cat.6 250MHz
Packaging Drum 305 m
Outer Diameter 5.8±0.3mm
Weight 13.0kg nominal
Pulling Pressure 11Kg nominal
Segregation Class B
Tensile Strength > 16.5N/mm²
Bending Radius ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load)
Temperature ange During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C

Product Overview

The R&M R&M R795138 Cat-6 U/UTP 305 Meter Network Cable is a Networking Cable built for reliable, everyday performance. Available at ৳15,300.00 price in Bangladesh, with fast delivery across Dhaka and nationwide. Key specifications of the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable include Standard: ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1, Color: Yellow Blue Grey, Conductor: Bare solid copper, Insulation: HDPE, overall Ø 0.92±0.02 mm, Twisting: 2 wires to the pair, Cable Lay-Up: 4 pairs to the core with cross separator, Pair Screen: Non, Overall Screen: Non, Sheath: PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal, Application: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM, Standards: ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1, Fire Rating: Flame retardant- PVC, Cable Designation: U/UTP Cat.6 250MHz, Packaging: Drum 305 m, Outer Diameter: 5.8±0.3mm, Weight: 13.0kg nominal, Pulling Pressure: 11Kg nominal, Segregation Class: B, Tensile Strength: > 16.5N/mm², Bending Radius: ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load), Temperature ange: During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C. Standout features: Color: Yellow Blue Grey, Weight: 13.0kg nominal. Whether you're upgrading an existing setup or building something new, this Networking Cable is a solid choice for gamers, professionals, and everyday users in Bangladesh looking for dependable performance. This is an original R&M product, available with official warranty and after-sales support from Creators Computer — Bangladesh's trusted online and retail computer shop.
