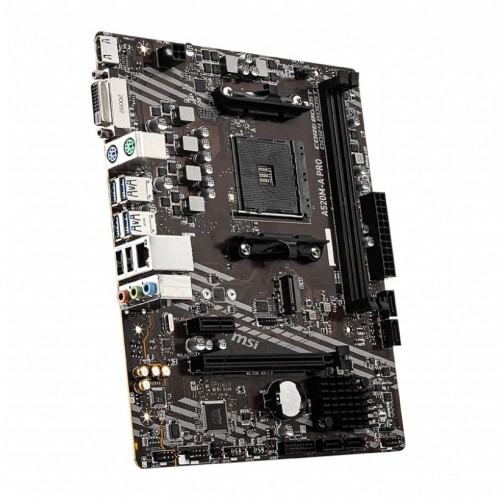

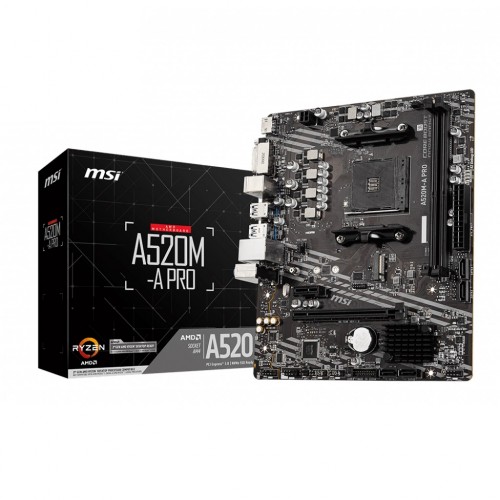

MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard
MSI MSI Motherboard

MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard

MSI MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard — a quality Motherboard available at Creators Computer.

Cash Discount Available

Product availability and pricing are subject to change. We will confirm availability and final price before processing your order.

Technical Specifications

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B520
Form Factor Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
PCI 1x PCIe 3.0 x1 slot 1x PCIe x16 slot
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Type Dual-channel memory architecture
Slots 2x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory 64GB
Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Max Shared Memory 16GB
HDMI 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
DVI-D (s) 1x DVI-D port, maximum resolution of 1920x1200@60Hz

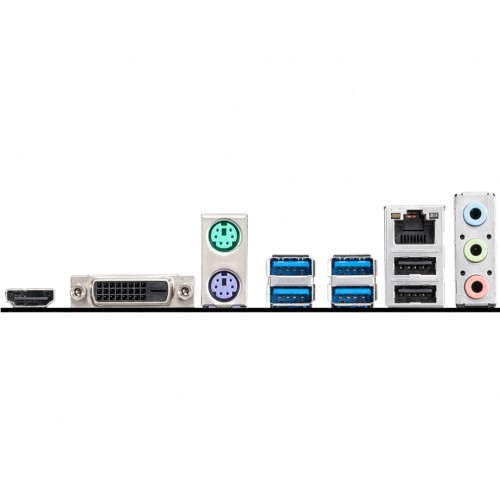

USB (s) AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H Gigabit LAN controller
Supported Storage AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1xTPM module connector
Special Features RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Manufacturing Warranty 03 Years Warranty

Product Overview

The MSI MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard is a Motherboard built for reliable, everyday performance. Available at ৳7,800.00 price in Bangladesh, with fast delivery across Dhaka and nationwide. Key specifications of the MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard include Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors, Chipset: AMD B520, Form Factor: Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm), PCI: 1x PCIe 3.0 x1 slot 1x PCIe x16 slot, M.2 Socket: 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices, Type: Dual-channel memory architecture, Slots: 2x DDR4 memory slots, Supported Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory, Maximum Memory: 64GB, Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, Max Shared Memory: 16GB, HDMI: 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz, DVI-D (s): 1x DVI-D port, maximum resolution of 1920x1200@60Hz, USB (s): AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, LAN Port (s): 1x Realtek RTL8111H Gigabit LAN controller, Supported Storage: AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices, Audio: Realtek ALC892 Codec 7.1-Channel High Definition Audio, Internal I/O Ports: 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper, TPM (Trusted Platform Module ): 1xTPM module connector, Special Features: RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices, Manufacturing Warranty: 03 Years Warranty. Standout features: Type: Dual-channel memory architecture. Whether you're upgrading an existing setup or building something new, this Motherboard is a solid choice for gamers, professionals, and everyday users in Bangladesh looking for dependable performance. This is an original MSI product, available with official warranty and after-sales support from Creators Computer — Bangladesh's trusted online and retail computer shop.
